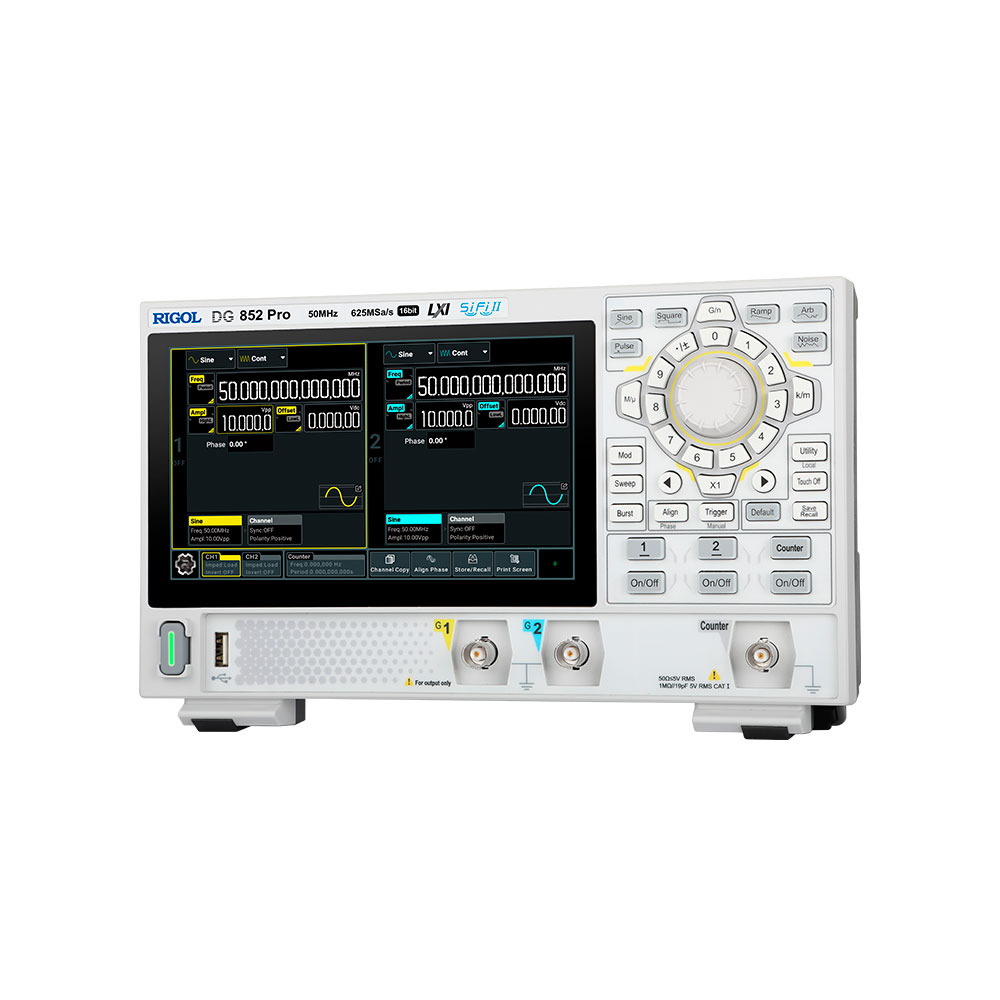

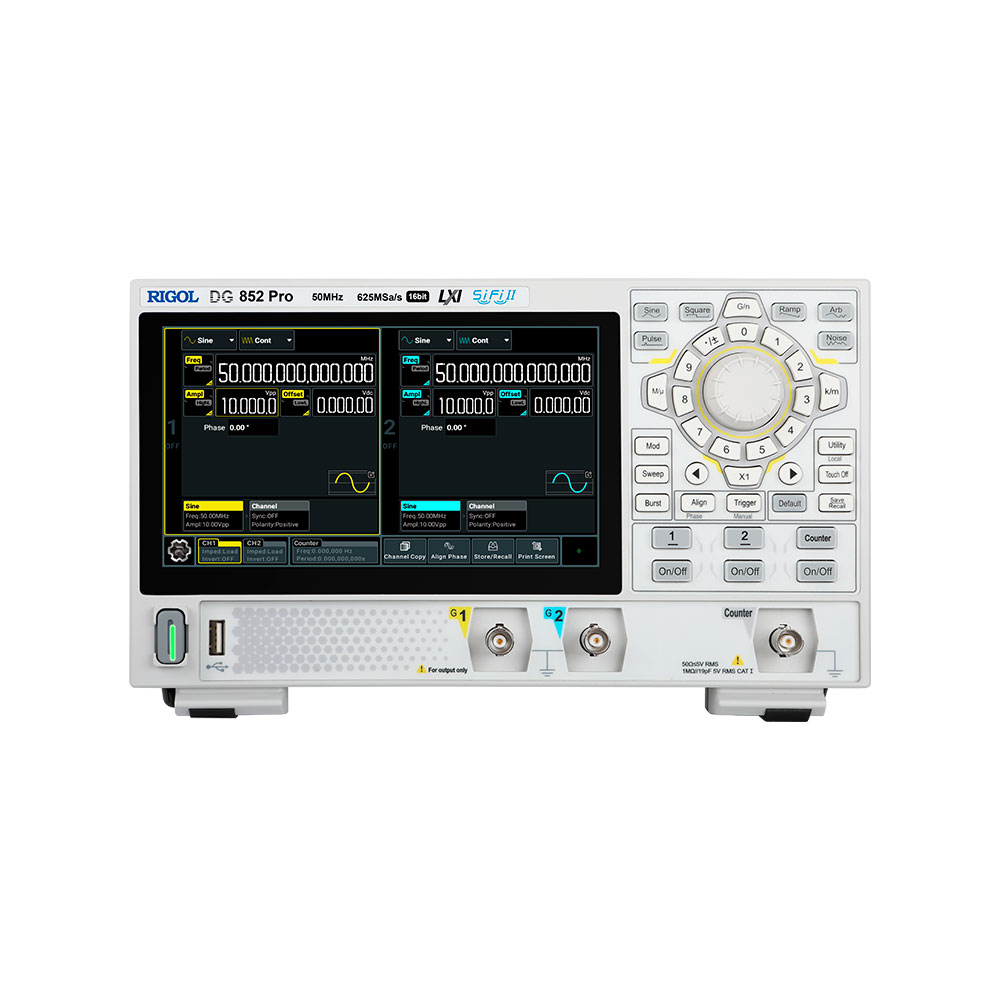

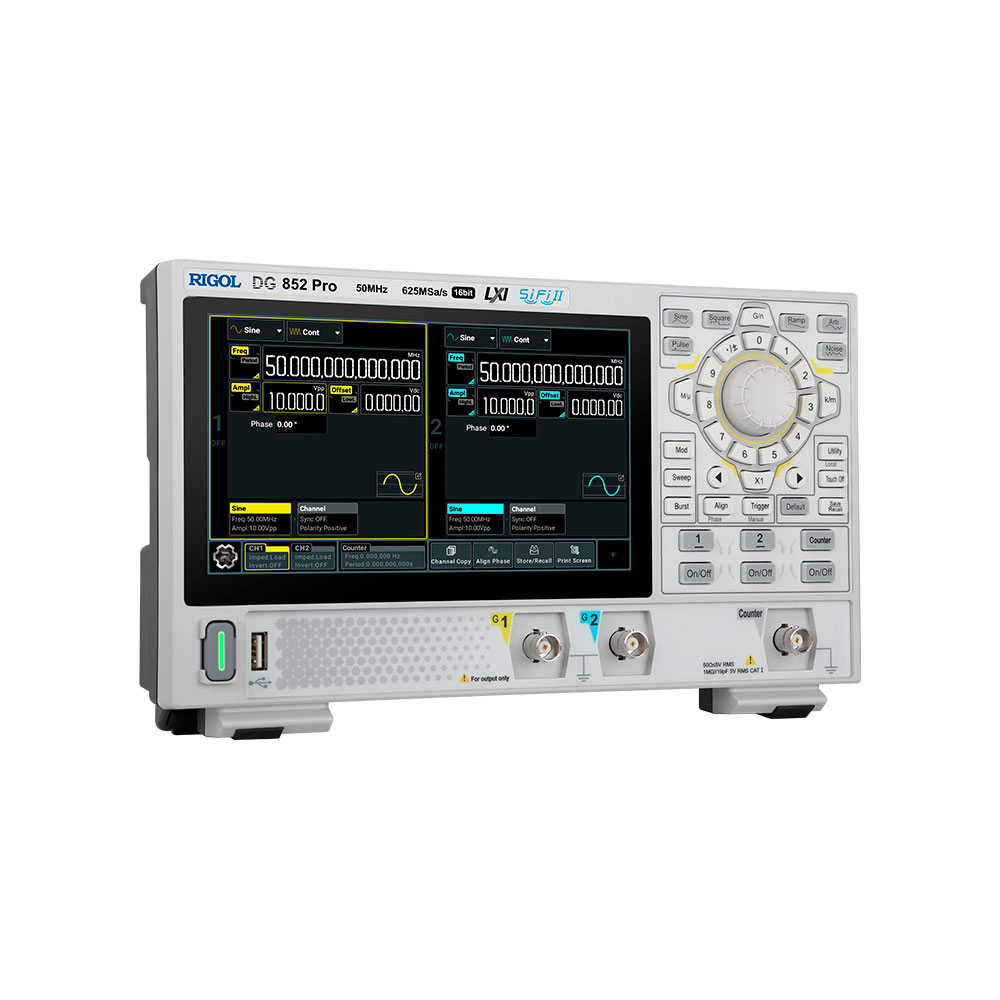

DG852 Pro series Function/Arbitrary Waveform Generator provides up to 625 MSa/s sample rate
and 2 Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform
generator that combines multiple functions including Function Generator, Arbitrary Waveform
Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and
Counter.
Особенности генератора Rigol DG852 Pro
- Max. sample rate: 625 MSa/s
- Max. output frequency: 50 MHz
- 16-bit vertical resolution
- Arbitrary waveform editing function with a max. Arb waveform length of 2 Mpts/CH (8 Mpts/CH
optional) - Built-in high-order harmonic generator (max. 20th order)
- Independent signal frequency measurement channel with a max. frequency of 500 MHz

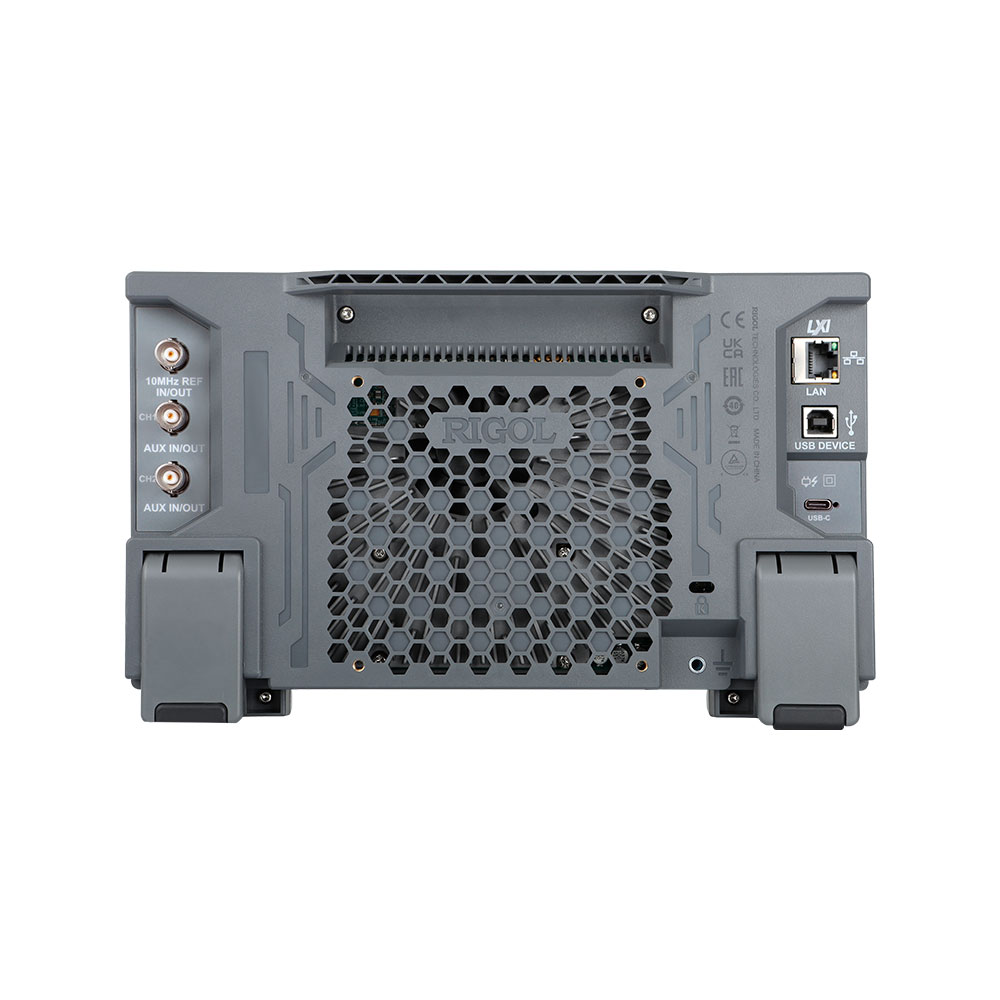

- USB and LAN interfaces for remote connection
- Type-C power interface for powering the instrument with mobile power source, satisfying
testing requirements in the field - Standard Web Control function for easier remote cooperation
